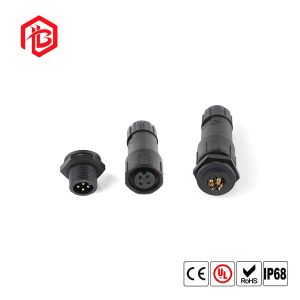

    M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications

    Ask Lasest Price
    Brand Name : GYD/BETT
    Model Number : M14
    Certification : UL/CE/Rhos
    Price : USD 1~3/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100sets 10days
    Delivery Time : 5~8work days
    • Product Details
    • Company Profile

    M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications

    Product Description

    Specification:

    Model number:BETT-M14-15003F1051
    Connector Body:Nylon(PA 66)+GF UL94V-0 1/16"
    Sealing:Silica Gel
    Contact: Brass with gold plated
    Mating style: Thread
    Temperature Rating:-40°C~+105°C
    Current rating:15A
    Voltage rating:300V
    Waterproof Rating:IP68
    Contact resistance:<=10mΩ
    Insulation resistance:1000MΩ at DC500V
    Breakdown voltage: 1.5KV/1 minute
    Pins range:2 to 10 and 3+4/2+5 pin
    Cable Range:3.5-7.5mm
    Terminal attach wire:Solder
    Pin Numbe
    Voltage Rating
    Current Rating
    Contact Resistance
    Insulation Resistance
    IP Code
    Cable Range
    Breakdown Voltage
    2
    300V
    15A
    <=10mΩ
    1000MΩ
    IP68
    <=7.5mm
    1.5KV/1 minute
    3
    300V
    15A
    <=10mΩ
    1000MΩ
    IP68
    <=7.5mm
    1.5KV/1 minute
    4
    300V
    15A
    <=10mΩ
    1000MΩ
    IP68
    <=7.5mm
    1.5KV/1 minute
    5
    110V
    5A
    <=10mΩ
    1000MΩ
    IP68
    <=7.5mm
    1.5KV/1 minute
    6
    110V
    5A
    <=10mΩ
    1000MΩ
    IP68
    <=7.5mm
    1.5KV/1 minute
    7
    110V
    5A
    <=10mΩ
    1000MΩ
    IP68
    <=7.5mm
    1.5KV/1 minute
    8
    110V
    5A
    <=10mΩ
    1000MΩ
    IP68
    <=7.5mm
    1.5KV/1 minute
    9
    110V
    5A
    <=10mΩ
    1000MΩ
    IP68
    <=7.5mm
    1.5KV/1 minute
    10
    110V
    5A
    <=10mΩ
    1000MΩ
    IP68
    <=7.5mm
    1.5KV/1 minute
    3+4
    110V
    15A+5A
    <=10mΩ
    1000MΩ
    IP68
    <=7.5mm
    1.5KV/1 minute
    2+5
    110V
    15A+5A
    <=10mΩ
    1000MΩ
    IP68
    <=7.5mm
    1.5KV/1 minute

    M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various ApplicationsM14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various ApplicationsM14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various ApplicationsM14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications

    Our Services

    M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various ApplicationsM14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications

    Company Information

    Shenzhen Bett Electronic Co.,Ltd is a leader of a waterproof plug in China, we have ten years of factory experience, a professional research team, standardized production workshop.
    We are specializing in a series 2-12 pins waterproof connector, incloding M12, aviation connector, panel mount connector, bulkhead connector, T/Y type connector(1 input 2-8 output connector), male to female connector, DC plug, assembled plug, ect.
    Above items are applied in the LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens, the sensors, instruments, new enegry industry, automotive electronics, industrial automation and so on.
    Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

    M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various ApplicationsM14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various ApplicationsM14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various ApplicationsM14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various ApplicationsM14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various ApplicationsM14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various ApplicationsM14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications

    Certifications

    M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications

    FAQ

    1.Q:Are you a factory or trading company?
    A:We are a factory from China. OEM&ODM service is available,welcome to contact us.

    2.Q:How can I get samples?
    A: Please tell me your courier number and your detail address,you need to pay for freight charges by yourself,but the samples is free.

    3.Can I choose other packing but carton?
    A:Please kindly contact us,your requirement is considered.

    4.How do I make sure I can get good products in your company?
    A:Our factory has gained ISO9001,ISO14001,and we pay great attention to the quality of products, from material purchase to product delivery, in this whole process, we have several product testing,therefore,we are selected by many domestic and foreign
    engineering and enterprises.

    5.Q:Can you give me some advise about how to buy a correct product?
    A:It's my pleasure to help you first of all.If you are interested in our products,one of the most effective and time-saving ways is that you show your drawing to us what you want,if you are not sure.We can give you a solution promptly.

    6.Q: The product I need is different from your product specification,but I like your company's product very much.What should I do?
    A:Any requirement from customers will be considered since we stick customer service to the center.The products you looking for can be customized by our professional R&D team.

    7.What is your payment terms?
    A:T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.

    8.Q:How to contact with you?
    A:Please give me your email,it is the best and the most effective method to keep in touch with each other,and i can provide you with professional solutions in the shortest time.

    9.Q:Can I visit your factory?
    A:Welcome to visit our factory,it is the best way to know more about us,we believe that you will be more firm to choose us to be your supplier.
